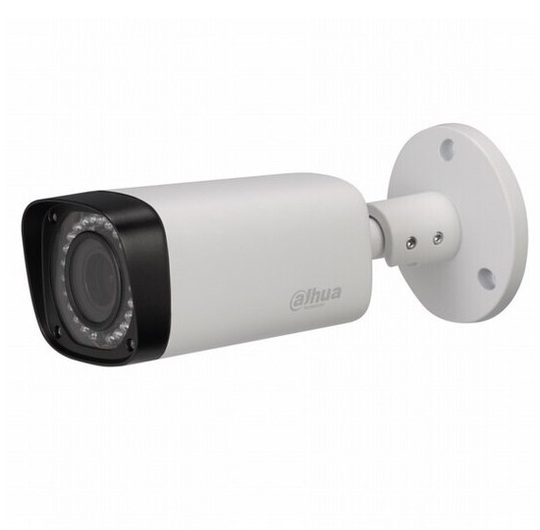

Dahua HAC-HFW1200RP-0360B HDCVI 2Mpix, 3,6mm, 20m, FULL HD, antivandal kamera 1964

Dahua HAC-HFW1200RP-0360B HDCVI 2Mpix, 3,6mm, 20m, FULL HD, antivandal kamera 1964

Tehničke karakteristike:

1/2.7" 2Megapixel CMOS 25/30fps@1080P
25/30/50/60fps@720P ICR, OSD
3.6mm fixed lens(2.8mm, 6mm optional)
Max. IR distance: 20m(66ft)
Smart IR CVI/TVI/AHD/CVBS output switchable DC12V, IP67
Image Sensor 1/2.7" CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination 0.02Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
IR LEDs 12
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max Aperture F1.85
Angle of View H: 89.9° (103°, 54.7°)
Focus Control N/A
Close Focus Distance 600mm (900mm, 2000mm)
23.62'' (35.43", 78.74'')
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS
video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface N/A
Eelectrical
Power Supply 12V DC ±25%
Power Consumption Max 3.2W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal
Resistance IP67
Construction
Casing Plastic
Dimensions 154.3mm×69.8mm×69.8mm (6.07"×2.75"×2.75")
Net Weight 0.14kg (0.31lb)
Gross Weight 0.20kg (0.44lb)

Proizvođač: Dahua

Zemlja porekla: Kina

Uvoznik: Gembird d.o.o., Beograd
